Funicular

The POMA funicular railway is an ideal transport solution for urban tourism and industrial environments regardless of the climate environment.
funiculaire POMA
The cableway transport

that adapt to the field

The POMA funicular railway is an ideal transport solution for urban tourism and industrial environments regardless of the climate environment. It is reversible is pulled by a rope, and can be integrated into a complex urban landscape, with curves and long distances.

Our funicular railways are custom-designed according to your requirements and use, and will offer you the best performance.

From the feasibility study to construction, from their retrofit to their maintenance, POMA is with you at every stage of the funicular railway project.

The funiculars

configurations
funiculaire POMA single lane with bypass

single lane with bypass

With the “single lane with bypass” configuration, the two carriers run on a single track and cross at a passing loop. The infrastructure is lighter for a large capacity with reversible operation



funiculaire POMA single lane

single lane

With the “single lane” configuration, the funicular railway works reversibly on one track.

funiculaire POMA dual lane

dual lane

Finally, with the “dual lane” configuration, each carrier moves back and forth independently on its track. This is the funicular railway solution to be adopted for transport with a very high number of visitors. This configuration also allows redundancy in the event of a track failure or maintenance.

 ADVANTAGES

of POMA FUNICULAR RAILWAY

AUTOMATION

The funicular railway can operate with or without an attendant, for controlled costs.

EXCEPTIONAL COMFORT

Optimal comfort for passengers when using the funicular railway:
• Quiet mode of transport
• Custom-made carrier, panoramic view and spacious carriers
• Accessibility
• Optimal environmental integration
• On the ground, the funicular railway is not affected by wind and weather
• In a tunnel, the funicular railway is ideal

FLEXIBILITY

The route is very flexible, straight or with bends, the funicular railway fits perfectly to the typology of the terrain.

The funicular in numbers

Transport capacity

10000 people/ hour

Date

Speed up to

14 m/s

conseil et expertise POMA

Size of carriers

up to 500 people

monde

Projects worldwide

More than 40

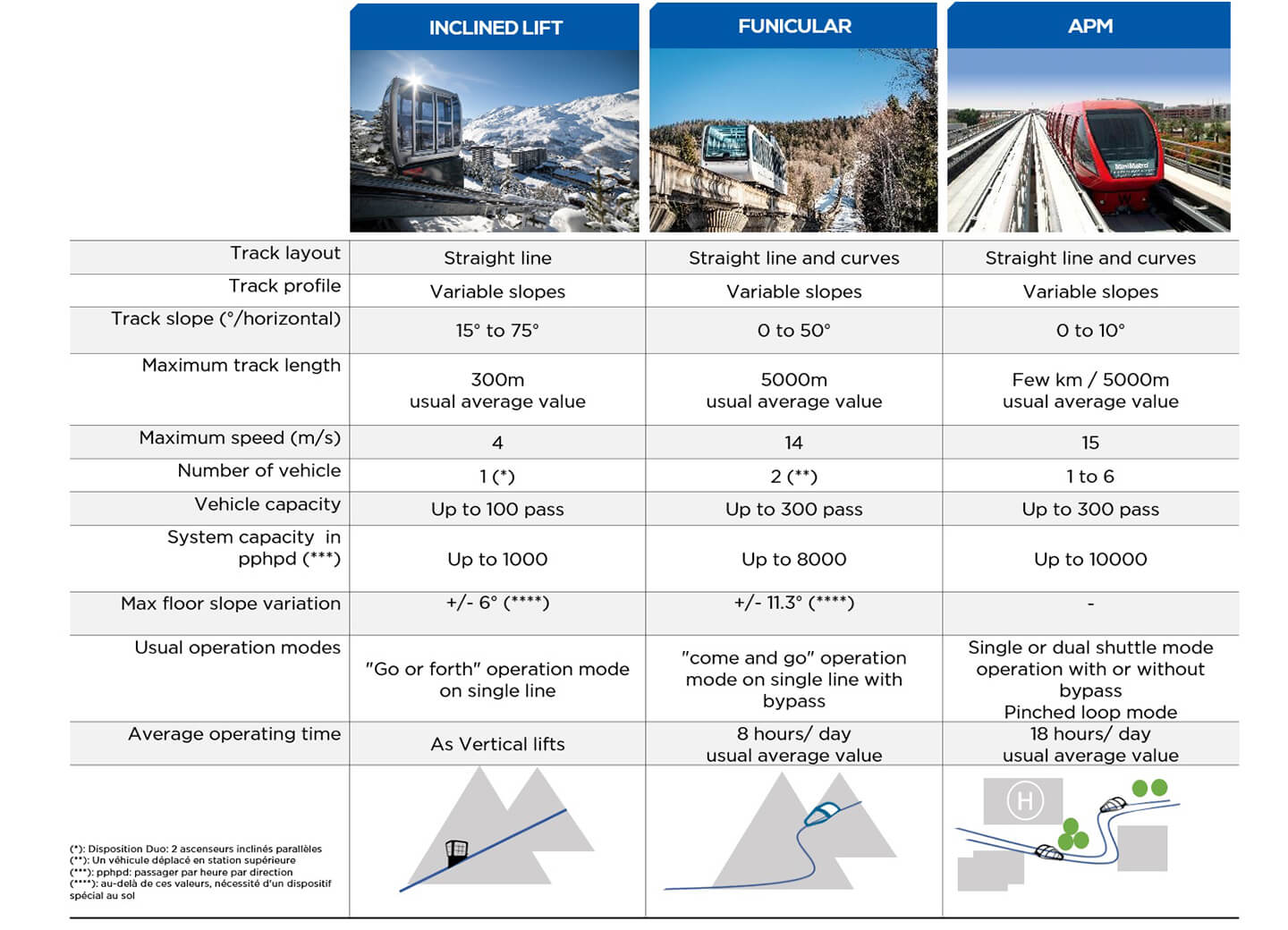

APM, FUNICULAR RAILWAY OR INCLINED ELEVATOR, WHAT ARE THE DIFFERENCES?

Characteristics

Technology
Mono-cable
Track layout
Straight lines and bends
Track profiles
Constant or variable slopes
Track gradient (°/horizontal)
0 to 50°
Maximum track length
5000 m (usual average value)
Maximum speed (m/s)
14
Number of carriers
1 or 2
Carrier capacity
Up to 500 passengers
System capacity in people/ hour/ direction
Up to 10000 passengers

All our references

of Funiculars

Enshi Grand Canyon Funicular

China – Enshi – 2020

In the Enshi Grand Canyon, one of the most well-known tourist parks in China, POMA has built a funicular railway to open up a natural area with many hiking paths to tourists.

Read

Fourvière

France – Lyon – 2018

POMA carried out the special inspection of the iconic funicular railway in Lyon. During the inspection, its carriers as well as the drive station were completely renovated and upgraded in SIGMA’s workshops, according to the SYTRAL guidelines aimed at “providing users with an even greater level of comfort, while preserving the line’s historic heritage”.

Read

Arcs Express

France – Bourg Saint-Maurice – 2019

An emblematic feature of the valley for more than 30 years, the funicular railway of Saint Maurice was one of the first elevators in the Alps. It was renovated in 2019. A pioneer in multimodal travel, Bourg Saint Maurice offers thousands of skiers and daily users a direct link between the skiing area of Les…

Read

Liaison Blanc Blanc

France – Grenoble – 2010

“Liaison Blanc-Blanc” is more than just a funicular railway, it is a mini mobile clean room, ISO 6 classified, which connects the two controlled environment areas of the Grenoble CEA over 250 metres.

Read

DISCOVER OUR OTHER solutions

for ground transport and special projects

Funicular

The POMA funicular railway is an ideal transport solution for urban tourism and industrial environments regardless of the climate environment. It is reversible, is pulled by a rope, and can be integrated into a complex urban landscape, with curves and long distances.

Automated People Mover – APM

An APM, Automated People Mover, is a fully automatic system without drivers and usually moves along on a flat plane, which differentiates it from funicular railways. Unlike with automotive vehicles, the machinery and motor equipment are located remotely thanks to the rope. Thus, the APM is often described as “light metro” technology, in the sense that the infrastructure (viaduct, track structure, etc.) and installation are lighter and faster.

Inclined Elevator

The funiculars use the technology of vertical elevators. Their optimal range of application is short journeys, on a sloping track and on a straight line. With their complete automation, they work without an operator.
funiculaire POMA

You need more information about funiculars Let’s talk about it!
